Viking Networked Clock Controlled Tone / Message Generator and Master Clock

Viking Networked Clock Controlled Tone / Message Generator and Master Clock
Images for general purposes only. Actual may be different than depicted.
Viking Networked Clock Controlled Tone / Message Generator and Master Clock

Viking Networked Clock Controlled Tone / Message Generator and Master Clock

SKU: CTG-2A
Rating:
Quantity Price Stock
4
Call 888-922-5200 for lead time
$698.98     /ea
4
0
$0.00
0
$0.00
0
CTG-2A

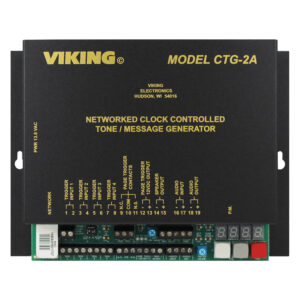

The Viking CTG-2A is a networked clock controlled tone / message generator designed to provide accurately timed tones and / or messages over an existing paging system. This provides a cost effective way of signaling school period changes, factory shifts, breaks, lunch periods, etc.

Features Inlude:
  • Up to 14 schedules and up to 1,000 events
  • 6 minutes of CD quality WAV file record time
  • Up to 14 different tones or messages
  • 4 programmable trigger inputs for emergency tones, etc.
  • Automatic Daylight Saving Time and leap year correction
  • Programmable NTP Clock synchronization
  • PC programming software included
  • RS485 clock SYNC terminals for remote Master Clock control of Viking CL Series RF synchronized clocks
  • Non-volatile memory with 4 day clock back up
  • Factory loaded with school / factory tones and evacuation signals (ANSI S3.41), etc.
  • Remote program via TCP / IP network
  • Page trigger outputs (12VDC and DPDT relay)
  • Programmable auxiliary relay contacts (DPDT)
  • 24 hour digital clock displays hours and minutes
  • One mono line level pre-amp input and audio output
  • Built-in 1 Watt mono audio amplifier
  • One isolated audio output for PABX / dial access paging
  • Master volume control
  • Programmable volume control per tone / message
  • Time base selection: Network, 50 / 60Hz or internal
  • Programmable message repeat count for trigger inputs

Download Product Information:

Viking CTG-2A Data Sheet
