Viking 40TB-IP Speaker

Viking 40TB-IP Speaker
Images for general purposes only. Actual may be different than depicted.
Viking 40TB-IP Speaker

Viking 40TB-IP Speaker

SKU: 40TB-IP
Rating:
Quantity Price Stock
Call 888-922-5200 for lead time
Call 888-922-5200 for lead time
$484.98     /ea
Call 888-922-5200 for lead time
0
$0.00
0
$0.00
0
40TB-IP

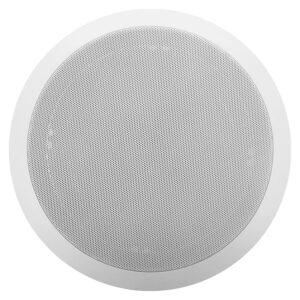

The Viking model 40TB-IP Talk-Back Ceiling / Wall Speaker enables two-way conversations via SIP and also allows for standard paging and background music via multicast. The Talk-Back Speaker system easily connects with a single CAT5/6 cable from your PoE switch. Its shallow depth allows the speaker to be conveniently mounted in a standard 2″ x 4″ stud wall or ceiling. An auxiliary switch input allows a hard wired wall button to initiate a SIP paging call.

Features Include:
  • PoE powered (class 3, <13 Watts)
  • Use with an optional BTR-3 wireless remote to activate calls or adjust speaker volume
  • Paging prioritization
  • Plays audio from multicast
  • SIP endpoint or multicast group member
  • Supports up to 10 multicast paging groups
  • Add an optional SL-2 blue, green, red or amber strobe light (see DOD 242)
  • Blue call status LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • Automatic Noise Canceling (ANC) feature for operation in noisy environments
  • Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
  • Selectable auto-answer feature for monitoring
  • Auto-provisioning via Viking programming software
  • Built-in high efficiency 6 Watt class D amplifier
  • Relay for activating door locks, strobe lights, external amplifiers, etc.
  • SIP / Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
  • Support for access code to prevent unwanted SIP calls
  • Line-level audio output for connecting to an external amplifier
  • Hangs up on: busy signal, time-out, or touch tone command
  • Network remote speaker volume control
  • Can drive additional external analog speakers for greater coverage
  • Mounting: Blind mounts into 9.5″ hole, clearance requirement of 3.45″ (87.3mm) above 0.5″ gypsum board ceiling
  • Heavy duty back box protects speaker and circuitry against plenum dust
  • Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
  • Diagnostics (for testing mic, speaker & relay)

Download Product Information:

Viking 40TB-IP Speaker Data Sheet
