NVT Phybridge NV-ET1804 TBus 4-Port PoE + Transmitter

NVT Phybridge NV-ET1804 TBus 4-Port PoE + Transmitter
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-ET1804 TBus 4-Port PoE + Transmitter

NVT Phybridge NV-ET1804 TBus 4-Port PoE + Transmitter

SKU: NV-ET1804
Call (888) 922-5200 for stock
Rating:
$852.95 /ea
0
$0.00
0
$0.00
0

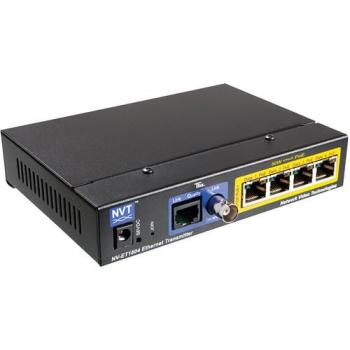

The NVT Phybridge Model NV-ET1804 TBus PoE+ Transmitter is a compact bus-architected media converter that delivers 10/100 BaseT Ethernet and PoE+ power via coax, UTP or 2-Wire or Shielded Twisted Pair cable. These transmitters are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/quality/activity for RJ45 and TBus ports.

NVT Phybridge NV-ET1804 Features:

  • Transmit 10/100/PoE+ BaseT, over Coax 8,000ft over RG-59U; 2,000ft over 2-Wire/UTP; 1,300ft over Shielded Twisted-Pair
  • Use with either the NV-ER1804 (4-Port), the NV-ER1808i (8-Port) or the NV-ER1816i (16-Port) Ethernet Receivers
  • Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
  • Easy configuration, no PC require
  • Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast etc.)
  • Advanced 128-bit AES encrypted transmission and PoE+ power technology
  • Built-in transient protection; industrial temperature range

Following are the Attached files for this product:

NVT Phybridge NV-ET1804 TBus 4-Port PoE + Transmitter Brochure
