NVT Phybridge NV-EC1701U-K4H 4-Camera Eo2 Transmission System

NVT Phybridge NV-EC1701U-K4H 4-Camera Eo2 Transmission System
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-EC1701U-K4H 4-Camera Eo2 Transmission System

NVT Phybridge NV-EC1701U-K4H 4-Camera Eo2 Transmission System

SKU: NV-EC1701U-K4H
Call (888) 922-5200 for stock
Rating:
$1,539.95 /ea
0
$0.00
0
$0.00
0

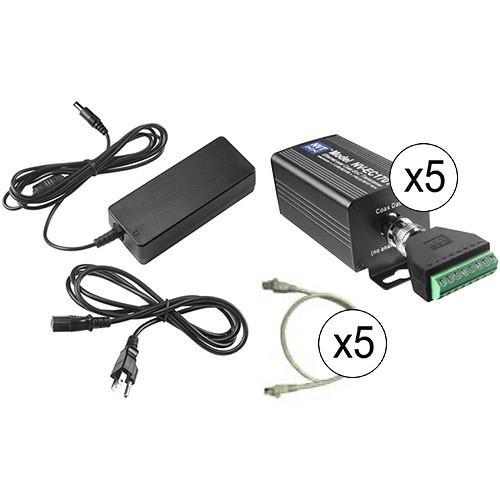

The NV-EC1701U-K4H from NVT Phybridge is a Single Entry Station Eo2 Ethernet over 2-Wire Transmission System includes (5) NV-EC1701U Transceivers, one (1) NV-PS56-90W Power Supply with an IEC line cord, and (5) NV-PC4PR Patch Cords. The NVT Phybridge Model NV-EC1701U Ethernet over 2-wire Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using ordinary 2-wire cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras. 56 VDC class 2 power is delivered to one transceiver, which distributes it to multiple remote transmitters, and their PoE, PoE+, or High Power PoE cameras.

NVT Phybridge NV-EC1701U-K4H Features:

  • 100 BaseT transmission; Network speeds up to 93 Mbps; Up to 1,000ft (305m)
  • One NV-EC1701U transceiver at the network-end can support multiple remote transceivers/IP cameras
  • 56 VDC is distributed over the coax to all connected equipment
  • Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
  • Easy configuration, no PC required
  • Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, etc.)
  • 128-bit AES encrypted transmission
  • Built-in transient protection; Industrial temperature range
