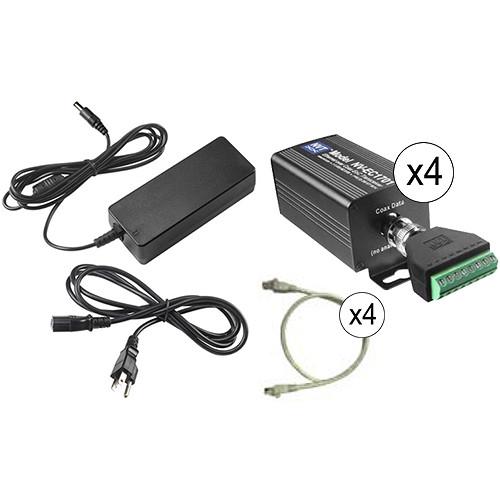

The NV-EC1701U-K3H from NVT Phybridge is a Single Entry Station Eo2 Ethernet over 2-Wire Transmission System includes (4) NV-EC1701U Transceivers, one (1) NV-PS56-90W Power Supply with an IEC line cord, and (4) NV-PC4PR Patch Cords. The NVT Phybridge Model NV-EC1701U Ethernet over 2-wire Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using ordinary 2-wire cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras. 56 VDC class 2 power is delivered to one transceiver, which distributes it to multiple remote transmitters, and their PoE, PoE+, or High Power PoE cameras.

NVT Phybridge NV-EC1701U-K3H Features:

• 100 BaseT transmission; Network speeds up to 93 Mbps; Up to 1,000ft (305m)
• One NV-EC1701U transceiver at the network-end can support multiple remote transceivers/IP cameras
• 56 VDC is distributed over the coax to all connected equipment
• Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
• Easy configuration, no PC required
• Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, etc.)
• 128-bit AES encrypted transmission
• Built-in transient protection; Industrial temperature range
