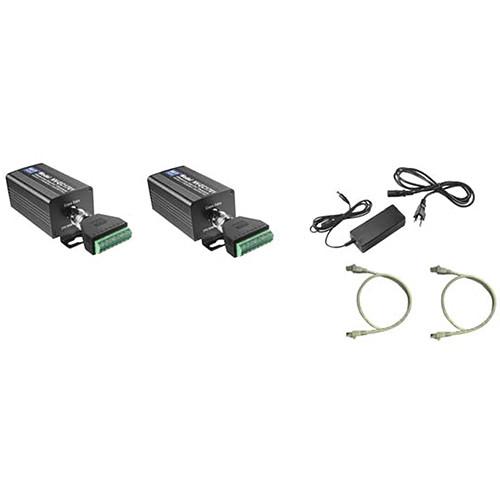

The NV-EC1701U-K1H from NVT Phybridge is a Single Entry Station Eo2 Ethernet over 2-Wire Transmission System includes two (2) NV-EC1701U Transceivers, one (1) NV-PS56-90W Power Supply with an IEC line cord, and two (2) NV-PC4PR Patch Cords. The NVT Phybridge Model NV-EC1701U Ethernet over 2-wire Transceiver is a compact media converter that allows 10/100 BaseT Ethernet and PoE+ power to be transmitted using ordinary 2-wire cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras. 56 VDC class 2 power is delivered to one transceiver, which distributes it to multiple remote transmitters, and their PoE, PoE+, or High Power PoE cameras.
NVT Phybridge NV-EC1701U-K1H Features:
Following are the Attached files for this product:
