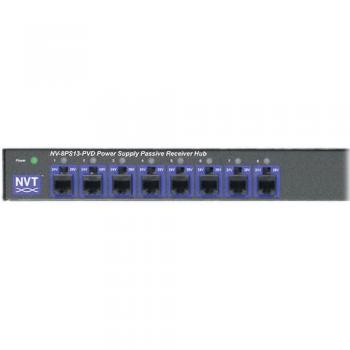

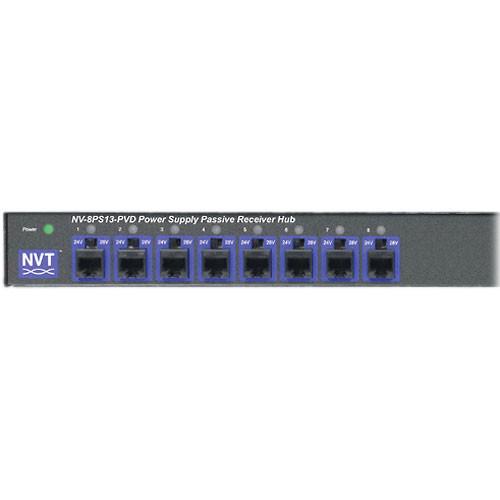

NVT Phybridge NV-8PS13-PVD Power Supply Passive Video Receiver Hub

NVT Phybridge NV-8PS13-PVD Power Supply Passive Video Receiver Hub
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-8PS13-PVD Power Supply Passive Video Receiver Hub

NVT Phybridge NV-8PS13-PVD Power Supply Passive Video Receiver Hub

SKU: NV-8PS13-PVD
Call (888) 922-5200 for stock
Rating:
$901.95 /ea
0
$0.00
0
$0.00
0

The NV-8PS13-PVD from NVT Phybridge is a Power Supply Passive Receiver Hub. It is Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. The NV-8PS13-PVD from NVT Phybridge is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Use with NVT Phybridge PVD transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load, miswires or fault conditions at a glance. Automatic-reset fault protection, transient protection and ground loop free individually floating outputs.

NVT Phybridge NV-8PS13-PVD Features:

  • Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Diagnostic LEDs show load/no load, miswires, and overload conditions
  • Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
  • Power cameras via UTP over significant distances (see Power Distance Calculator)
  • 1U high, 8" deep, wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included

Following are the Attached files for this product:

NVT Phybridge NV-8PS13-PVD Power Supply Passive Video Receiver Hub Brochure
