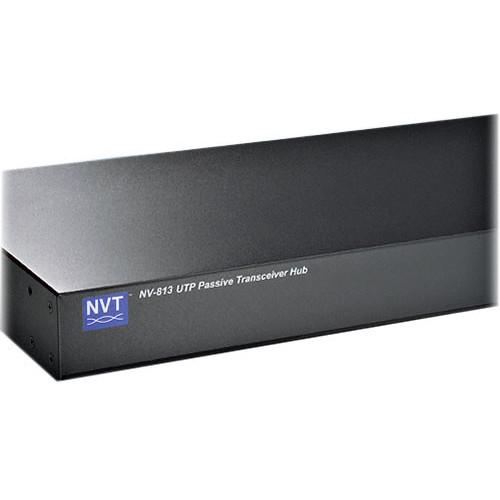

NVT Phybridge NV-813 8 Channel Passive Hub

NVT Phybridge NV-813 8 Channel Passive Hub
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-813 8 Channel Passive Hub

NVT Phybridge NV-813 8 Channel Passive Hub

SKU: NV-813
Call (888) 922-5200 for stock
Rating:
$526.95 /ea
0
$0.00
0
$0.00
0

The NV-813 from NVT Phybridge is an 8Channel Passive that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire and also supports any type of Baseband signals. The NV-813 from NVT Phybridge is Perfect for larger CCTV installations where port density and camera number growth are prevalent. In NV-813 Up-the-coax type signal may be sent over the same wire pair at distances up to 750ft (225m).The unparalleled interference rejection ability of the NV-813 hub allows video signals to co-exist in the same wire bundle as telephone and datacom. Damaging voltage spike problems are eliminated due to the built-in transient protection and also include coax cables.

NVT Phybridge NV-813 Features:

  • Full-motion CCTV video at distances up to 750ft (225m) when used with NVT Phybridge passive transreceiver
  • Use with any NVT Phyrbidge active receiver for distances up to 3,000ft (1km)
  • RJ45 video connectivity with optional NV-RJ45A RJ45 to-screw-terminal
  • Compatible with qualified UTP cameras
  • Supports “up-the coax” type control signal up to 750ft (225m)
  • Includes Built-in transient protection and ground lifting
  • Limited lifetime warranty
  • Includes eight 2ft (60cm) coax jumper cables and rackmount hardware
  • Includes Coax Cables
