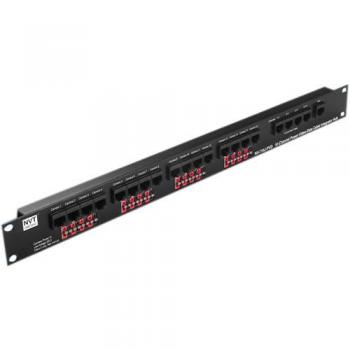

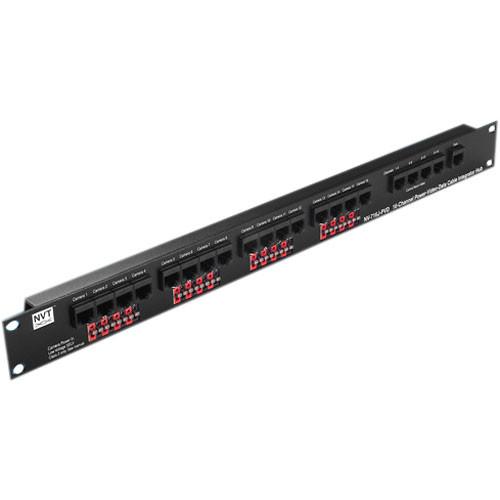

NVT Phybridge NV-716J-PVD 16 Channel PVD Cable Integrator

NVT Phybridge NV-716J-PVD 16 Channel PVD Cable Integrator
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-716J-PVD 16 Channel PVD Cable Integrator

NVT Phybridge NV-716J-PVD 16 Channel PVD Cable Integrator

SKU: NV-716J-PVD
Call (888) 922-5200 for stock
Rating:
$225.95 /ea
0
$0.00
0
$0.00
0

The NV-716J-PVD from NVT Phybridge is a 16-Ch PVD Cable Integrator. It is typically installed in the wiring closet or IDF room, the NV-716J-PVD is a passive “pass-through” wiring device that efficiently consolidates camera power, video and pan/tilt/zoom telemetry data onto a minimum of 4-pair RJ45 cables. The NV-716J-PVD from NVT Phybridge is a 16-Ch PVD Cable Integrator that converts Power, video and data at the camera using a PVD transceiver which utilizes a single 4-pair cable with RJ45 connectors to deliver each camera's signals to the NV-716J-PVD. Up to sixteen cameras are supported. The NV-716J-PVD receives low-voltage camera power from any third-party multi-output Class 2 power supply. Control Room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. P/T/Z telemetry data, if required, pass through another 4-pair RJ45 cable. Control Room connections may be made using any multi-channel NVT Phybridge receiver or hub. All equipment employs industry-standard EIA/TIA 568B pinouts.

NVT Phybridge NV-716J-PVD Features:

  • Connectivity for up to sixteen cameras, each via a single RJ45 4-pair cable
  • Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
  • Uses any third-party power supply to power cameras via UTP over significant distances (see Power Distance Calculator)
  • Cable-management solution from the camera to the Wiring Closet and on to the Control Room
  • 1U high; 1" deep; wall or rack-mountable

Following are the Attached files for this product:

NVT Phybridge NV-716J-PVD 16 Channel PVD Cable Integrator Brochure
