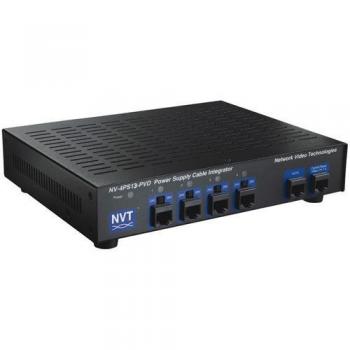

NVT Phybridge NV-4PS13-PVD Power Supply Passive Receiver Hub

NVT Phybridge NV-4PS13-PVD Power Supply Passive Receiver Hub
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-4PS13-PVD Power Supply Passive Receiver Hub

NVT Phybridge NV-4PS13-PVD Power Supply Passive Receiver Hub

SKU: NV-4PS13-PVD
Rating:
Quantity Price Stock
Call 888-922-5200 for lead time
Call 888-922-5200 for lead time
$450.95     /ea
Call 888-922-5200 for lead time
0
$0.00
0
$0.00
0
NV-4PS13-PVD

The NV-4PS13-PVD from NVT Phybridge is a Power Supply Passive Receiver Hub. It is Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. The NV-4PS13-PVD from NVT Phybridge is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Use with NVT Phybridge’s PVDTM transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.

NVT Phybridge NV-4PS13-PVD Features:

  • Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Diagnostic LEDs show load/no load, miswires, and overload conditions
  • Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
  • Power cameras via UTP over significant distances (see Power Distance Calculator)
  • 1U high x 8" deep wall, desk or desk rack-mountable
