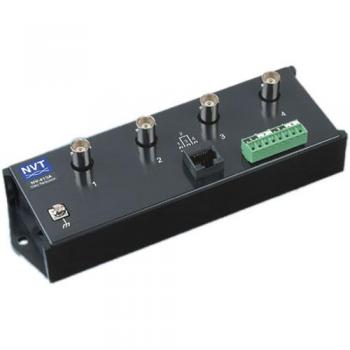

NVT Phybridge NV-413A 4 Channel Passive Video Transceiver

NVT Phybridge NV-413A 4 Channel Passive Video Transceiver
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-413A 4 Channel Passive Video Transceiver

NVT Phybridge NV-413A 4 Channel Passive Video Transceiver

SKU: NV-413A
Call (888) 922-5200 for stock
Rating:
$225.95 /ea
0
$0.00
0
$0.00
0

The NV-413A from NVT Phybridge is a 4 channel Passive Video Transceiver. It allows the transmission of real-time monochrome and color video over Unshielded Twisted-Pair (UTP) telephone wire and also supports Broadband signals of any type. The NV-413A from NVT Phyrbidge is fully compatible with qualified cameras that are equipped with an NVT Phybridge twisted-pair output and Damaging voltage spike problems are eliminated with built-in transient protection. The unparalleled interference rejection and low emissions of the NV-413A allows video signals to co-exist in the same wire bundle as telephone and datacom that allows the use of a shared and existing cable plant.

NVT Phybridge NV-413A Features:

  • Consists Four passive transceiver channels
  • Full-motion CCTV video at distances up to 750ft (225m)
  • Up to 3,000ft (1km) with an NVT Phybridge active receiver
  • Supports pluggable screw terminal or RJ45 connections
  • No power required
  • Includes Built-in transient protection
  • Supports "up-the-coax" type control signal up to 750ft (225m)

Following are the Attached files for this product:

NVT Phybridge NV-413A 4 Channel Passive Video Transceiver Brochure
