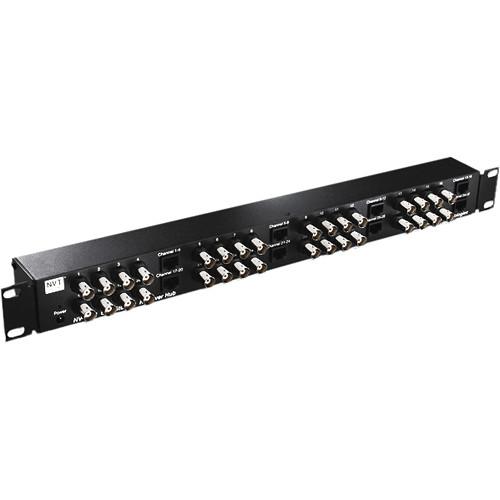

NVT Phybridge NV-3242 32 Channel StubEQ Active Receiver Hub w/ Power Supply

NVT Phybridge NV-3242 32 Channel StubEQ Active Receiver Hub w/ Power Supply
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-3242 32 Channel StubEQ Active Receiver Hub w/ Power Supply

NVT Phybridge NV-3242 32 Channel StubEQ Active Receiver Hub w/ Power Supply

SKU: NV-3242
Call (888) 922-5200 for stock
Rating:
$3,757.95 /ea
0
$0.00
0
$0.00
0

The NV-3242 from NVT Phybridge is a 32 channel StubEQ active hub, power supply. Employing NVT Phybridge's latest generation StubEQ technology, the NV-3242 is a 32-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2 or better-unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content. The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.

NVT Phybridge NV-3242 Features:

  • Adaptive StubEQTM fully automatic 2-band equalization provides adjustment free equalization every time
  • Compact rack-mountable 19â 1U high enclosure features 32 channels
  • Full motion CCTV video at distances up to 1,500ft (460m) when used with any passive NVT Phybridge transceiver or hub, 2,000ft (600m) when used with the NV-653T active transmitter
  • RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
  • Exceptional interference rejection
  • Built-in transient protection and ground lifting
  • Compatible with qualified UTP cameras
  • Includes rack mount hardware and two NV-RJ45A adaptors
