NVT Phybridge NV-314A Passive Video/Audio Transceiver

NVT Phybridge NV-314A Passive Video/Audio Transceiver
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-314A Passive Video/Audio Transceiver

NVT Phybridge NV-314A Passive Video/Audio Transceiver

SKU: NV-314A
Call (888) 922-5200 for stock
Rating:
$115.95 /ea
0
$0.00
0
$0.00
0

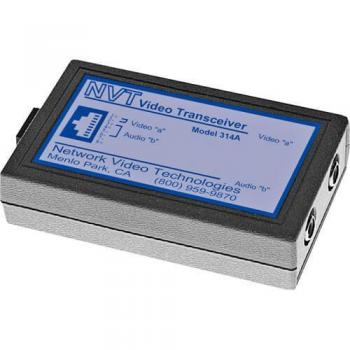

The NVT Phybridge Model NV-314A Video/Audio Transceiver is a passive (non-amplified) device that allows transmission of real-time monochrome or color video and audio over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

The unparalleled interference rejection and low emissions of the Model NV-314A allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. "Up-the-coax" type signal may be sent over the same wire pair.

The NV-314A comes with an RJ45 patch-cord. For rack-mounting, use the NV-418AR (which contains hardware equivalent to two NV-314As) with the NV-RM15 rack system.

Applications include Security/Surveillance, Video Distribution, or Distance Learning.

NVT Phybidge NV-314A Features:

  • Furll-motion monochrome or color video and audio at distances up to 750ft (225m) when used with another passive transceiver and 3,000ft (1km) when used with an active receiver such as the NV-518A
  • No power required
  • Built-in transient protection
  • Exceptional interference rejection
  • Supports "up-the-coax" type control signals
  • Frequency Response DC to 10 MHz
  • RJ45 and RCA jack connections
  • Limited lifetime warranty

Following are the Attached files for this product:

NVT Phybridge NV-314A Passive Video/Audio Transceiver Brochure
