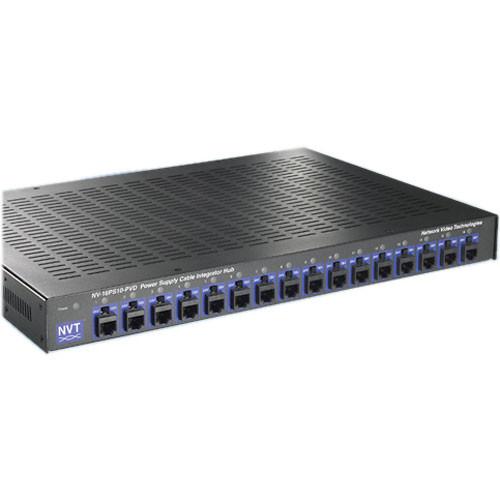

The NV-16PS10-PVD from NVT Phybridge is a Power Supply Cable Integrator Hub and is designed for installation in the wiring/IDF telecom closet. The NV-16PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts. In NV-16PS10-PVD from NVT Phybridge at the camera, Power, Video and Data connections are made using a PVD transceiver via an RJ45 connector and a single 4-pair cable. The Consolidated P/T/Z telemetry data passes through the NV-16PS10-PVD's data path and is connected to the controller via another 4-pair RJ45 cable and Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras.
NVT Phybridge NV-16PS10-PVD Features:
Following are the Attached files for this product:
