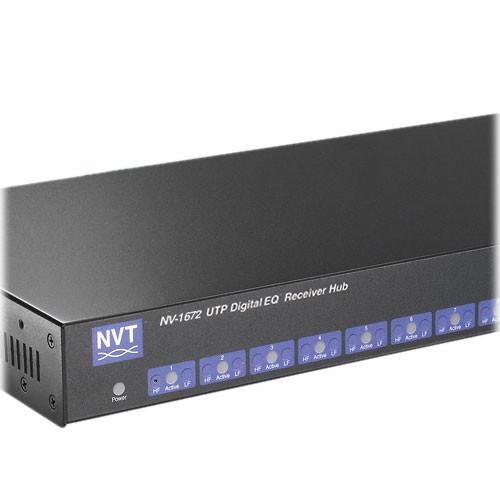

NVT Phybridge NV-1672 16 Channel Digital EQ Active Receiver Distribution Amplifier Hub

NVT Phybridge NV-1672 16 Channel Digital EQ Active Receiver Distribution Amplifier Hub
Images for general purposes only. Actual may be different than depicted.
NVT Phybridge NV-1672 16 Channel Digital EQ Active Receiver Distribution Amplifier Hub

NVT Phybridge NV-1672 16 Channel Digital EQ Active Receiver Distribution Amplifier Hub

SKU: NV-1672
Call (888) 922-5200 for stock
Rating:
$2,780.95 /ea
0
$0.00
0
$0.00
0

The NV-1672 from NVT Phybridge is a 16-Channel DigitalEQ Hub that allows the transmission of full-motion monochrome or color video for distances up to 1 mile (1,6km) using Category 2 or better-unshielded twisted-pair (UTP) wire. The NV-1672 from NVT Phybridge continuously and automatically conditions the video signal, compensating for cable attenuation, wiring polarity, ground loops, and voltage transients, independent of video signal content. In NV-1672 Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. The unparalleled interference rejection and low emissions of the NV-1672 allow long run video signals to co-exist in the same wire bundle as telephone and datacom and allows the use of shared or existing cable plant. Damaging voltage spike problems are eliminated due to built-in transient protection.

NVT Phybridge NV-1672 Features:

  • Provides adjustment-free equalization every time
  • Full motion CCTV video at distances up to 3,000ft (1km) when used with any passive NVT Phybridge transceiver or hub, 1 mile (1,6km) when used with the NV-653T active transmitter
  • Includes RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors
  • Up to 1,000ft (300m) with shielded twisted-pair when used with any passive NVT Phybridge transceiver
  • Automatic compensation for reverse-polarity wiring
  • Includes Built-in transient protection and ground lifting
  • Compatible with qualified UTP cameras
  • Includes four 2ft (60cm) coax jumper cables
