UTI312

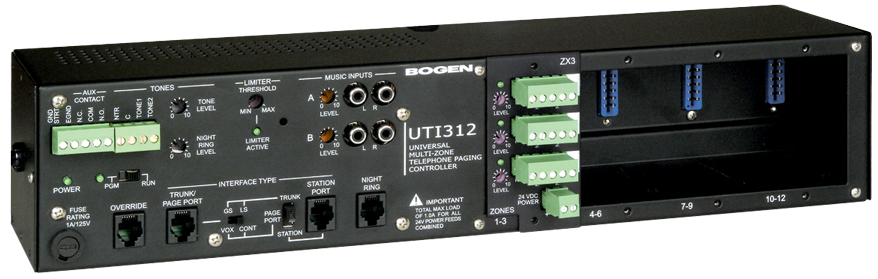

The Bogen UTI312 Zone Paging Controller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups.The UTI312 also offers flexible dialing.

Bogen UTI312 Paging Controller Features:

  • Expandable from 3 to 12 zones (in 3-zone increments using ZX3 modules)
  • One-way paging only
  • Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports
    (with or without contact closure activation)
  • 2 Background music (BGM) inputs
  • BGM sources assignable per zone
  • Level control for each zone output
  • 150 Speaker T/R drive capacity per zone
  • Programmable AUX Relay
  • Override input (loop start or page port)
  • Separate override, all-call, tone trigger, night ring, and code call zone groups
  • Contact and 90V Night Ring inputs
  • 24 User-assignable zone groups
  • FCC Part 68 Registered
  • Listed to UL Standard 60950 for U.S. and Canada
